Jaw crusher could be widely used in mining, smelting building material, highway, railway water conservancy and chemical industries, which can crush varieties of materials with a compressive strength no more than 320MPa. Jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the moving jaw plate move by a regulated track. Therefore, the materials in the crushing cavity, which is composed of fixed jaw plate, moving jaw plate and side liner, can be crushed and discharged through the discharging opening. It can also use diesel engine as its power.
Product Description
Jaw crusher could be widely used in mining, smelting building material, highway, railway water conservancy and chemical industries, which can crush varieties of materials with a compressive strength no more than 320MPa. Jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the moving jaw plate move by a regulated track. Therefore, the materials in the crushing cavity, which is composed of fixed jaw plate, moving jaw plate and side liner, can be crushed and discharged through the discharging opening. It can also use diesel engine as its power.
Product Features
1.High crushing ratio, uniform particle size
2.Point eclipse discharge opening adjustment device, reliable and easy to adjust the range to meet the needs of different customers.
3.Safe and reliable lubrication system, easy to replace parts, low maintenance workload.
4.Simple structure, reliable function, low operating cost.
Product Structure
Product Parameters
Model | Raw material size(mm) | Finished product size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
PE-150*250 | 125 | 10-40 | 1-5 | 5.5 | 0.9 |
| PE-250*400 | 225 | 18-48 | 5-16 | 15 | 2.8 |
PE-400*600 | 350 | 40-100 | 20-40 | 30 | 7 |
PE-500*750 | 400 | 50-120 | 30-80 | 45 | 12 |
PE-600*900 | 480 | 75-200 | 80-200 | 75 | 17 |
PE-750*1060 | 630 | 80-235 | 120-300 | 90 | 29 |
PE-900*1200 | 750 | 150-300 | 250-750 | 110 | 51 |

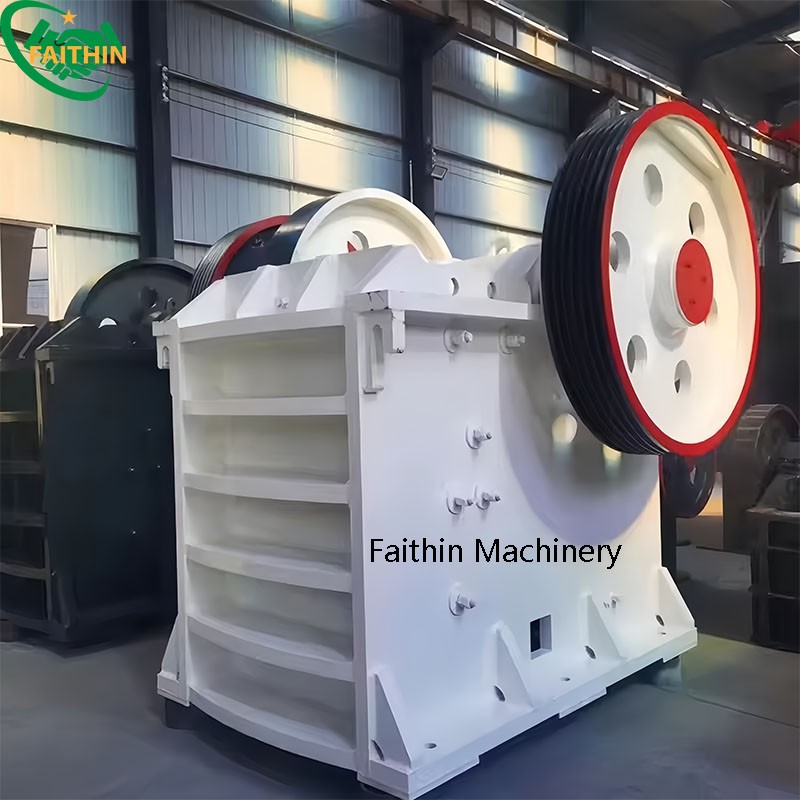

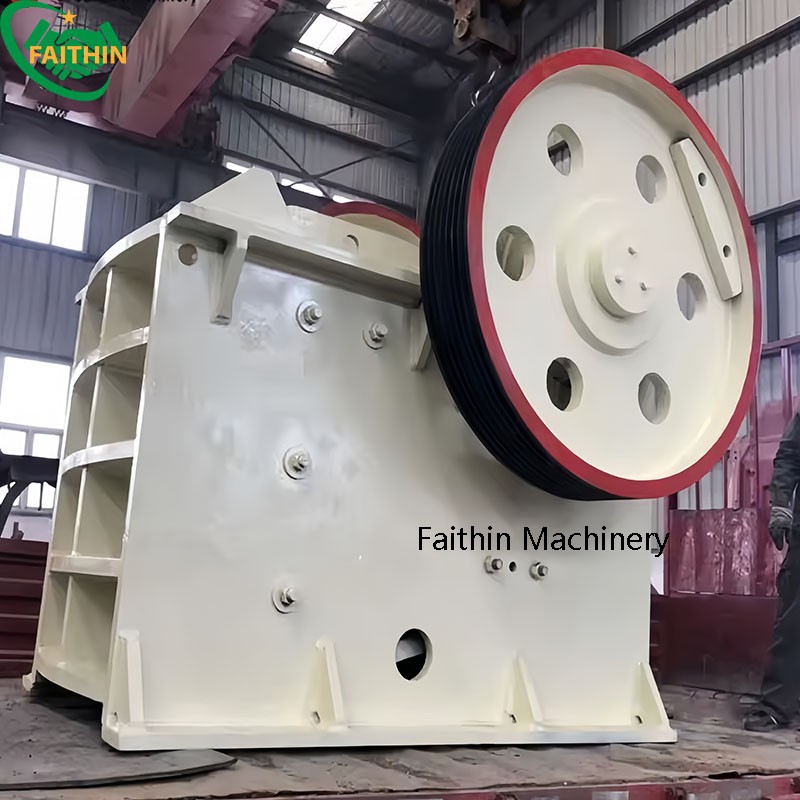

Detailed Photos
Customer visiting
Company Profile
Zhengzhou Faithin Machinery Equipment Co., Ltd. is located in Zhengzhou City, the capital of Henan Province. We main engaged in food machinery, agricultural machinery, kitchen equipment, home appliances, mining machinery and so on. We have a young and energetic team that actively helps you solve your confusion during the trading process. In addition to providing you with highly competitive and high-quality products, we also have excellent after-sales service. We have our own factory and overseas customs clearance team, which can provide customs clearance services for most countries. We provide customers with the lowest purchase cost. We have formed an economic entity integrating scientific research development and sales, which has been widely praised by users. Products are exported to Europe, Africa, North America Southeast Asia, The Middle East, South Africa and other 60 countries and regions.
FAQ
1.How do you ensure the quality of your products?
We have 12 months warranty. 100% QC inspection before shipment.
2.How about the payment term?
T/T, L/C, Western union, PayPal, or the way you like, we can discuss details.
3.What about the service after sale?
Once you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.
4.How is it different from other brands in China?
We not only sell machines, we pay more attention to the quality of machines and after-sales service. We always believe that the customer's reputation is the best advertisement. Our company's purpose is: quality, integrity, service, after-sales is the company's life!
5.Which kind documents your company can provided?
After ship depart from China port, we can get documents from Shipping company such as: bill of lading, insurance documents. packing list , commercial invoice . if you need, we also can apply CO, FORM E etc.
